Solar Power Manager 5V
FREE SHIPPING to Peninsular Malaysia for orders over RM39.00

RM42.50
Solar Power Manager 5V
Price RM42.50
Product SKU EEP3929
Brand DFRobot
Size (L x W x H) 8 cm x 6.5 cm x 2.5 cm
Reward Points 43
Points Needed 2125
Availability Out Of Stock
Description
Highlight
  • Solar power management IC: CN3065
  • Solar input voltage (SOLAR IN): 4.5V~6V
  • Battery input (BAT IN): 3.7V single cell Li-polymer/Li-ion battery

DESCRIPTION
DFRobot is launching a brand new series - Sunflower, focusing on high-efficiency, small power solar energy management for IoT projects and renewable energy applications.

Solar Power Manager 5V is a small power and high-efficiency solar power management module designed for 5V solar panel. It features as MPPT (Maximum Power Point Tracking) function, maximizing the efficiency of the solar panel. Apart from serving as a solar charger, the module can provide up to 900mA charging current to 3.7V Li battery with USB charger. The ON/OFF controllable DC-DC converters with 5V 1A output satisfies the needs of various solar power projects and low-power applications. The module also employs various protection functions, such as battery/solar panel reverse connection protection, output over temperature and over current/short circuit protection, which greatly improves the stability and safety of the system. You can also implement a Battery Capacity Indicator to check the current battery charging condition.


NOTE: This board DOES NOT have over-discharge protection circuits, please use a 3.7V Lipo battery with protection circuits.

Board Overview

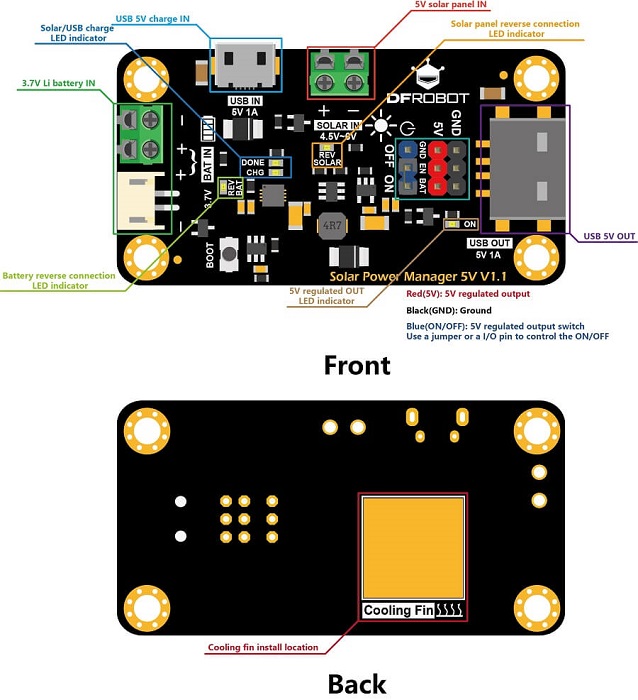

 Solar Power Manager 5V interfaces (front)

Solar Power Manager 5V interfaces (back)



Connection Diagram

Build a solar powered system





FEATURES

  • Constant voltage MPPT algorithm, maximizing solar panel efficiency
  • Designed for 5V solar panel
  • Double charging mode: solar/USB charger (900mA max charge current)
  • 5V ON/OFF controllable regulated power supply for low-power applications
  • Various protection functions
  • USB connector with ESD shell


APPLICATIONS

  • Smart solar environment monitor system
  • Solar powered robot
  • Small solar street lamp
  • Solar power bank


SPECIFICATION

  • Solar power management IC: CN3065
  • Solar input voltage (SOLAR IN): 4.5V~6V
  • Battery input (BAT IN): 3.7V single cell Li-polymer/Li-ion battery
  • Charge current(USB/SOLAR IN): 900mA Max trickle charging, constant current, constant voltage three phases charging
  • Charging cutoff voltage(USB/SOLAR IN): 4.2V±1%
  • USB IN voltage: 5V
  • Regulated power supply: 5V 1A
  • Regulated power supply efficiency (3.7V battery IN)
  • 5V/USB OUT: 89%@10%Load, 86%@50%Load, 83%@90%Load
  • USB/solar charge efficiency: 73%@3.7V 900mA BAT IN
  • Maximum quiescent current: <1 mA
  • Protection functions
  • BAT IN: over charge/reverse connection protection
  • 5V/USB OUT: short circuit/over current/over heat protection
  • SOLAR IN: reverse connection protection
  • Operation temperature: -40℃~85℃
  • Dimension: 33.0mm*63.0mm


DOCUMENTS



PACKAGE INCLUDES

1 x Solar Power Manager 5V






Reviews (0)
view all
back
0
0 reviews
What's in the box

1 x Solar Power Manager 5V
